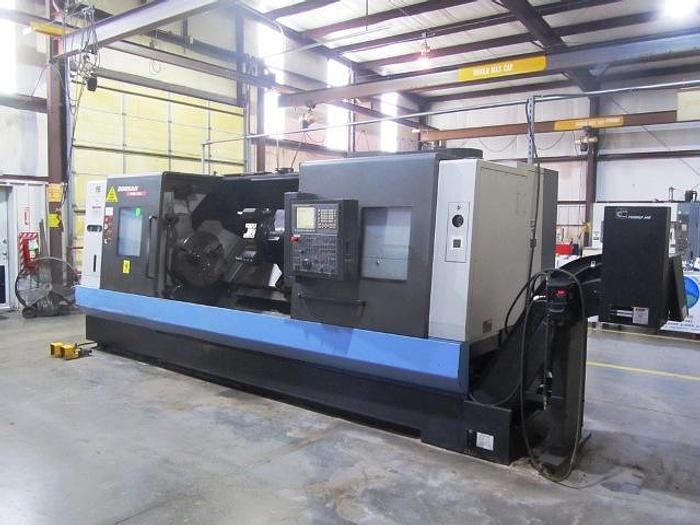

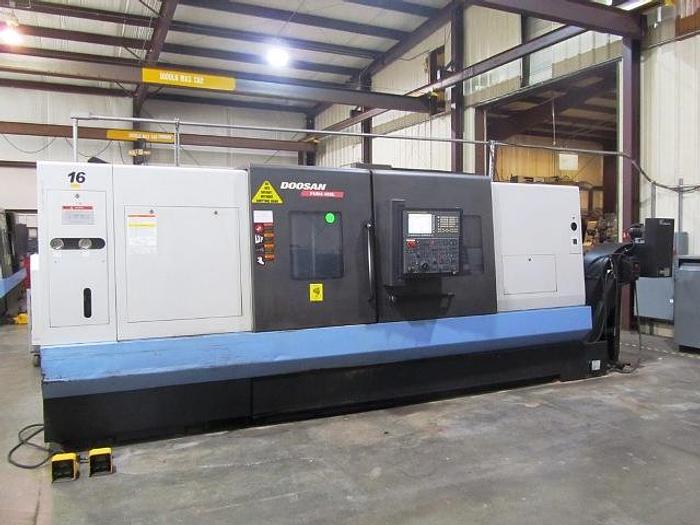

2014 Doosan PUMA 480L CNC Turning Center
Sold
2014 Doosan PUMA 480L CNC Turning Center
Location:Cincinnati, OH
Description

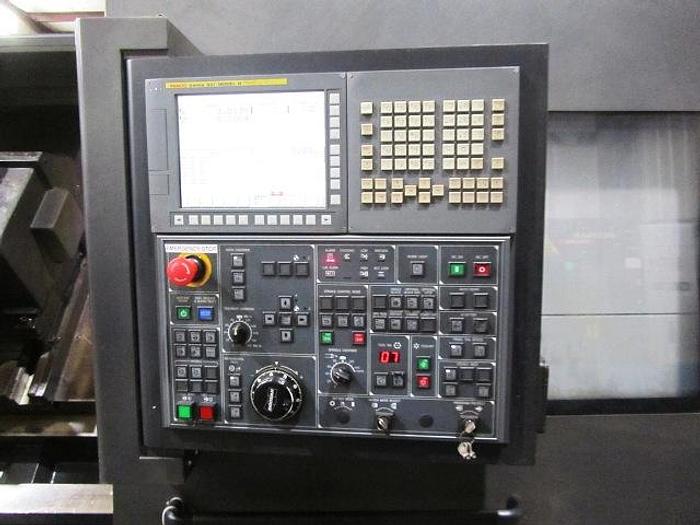

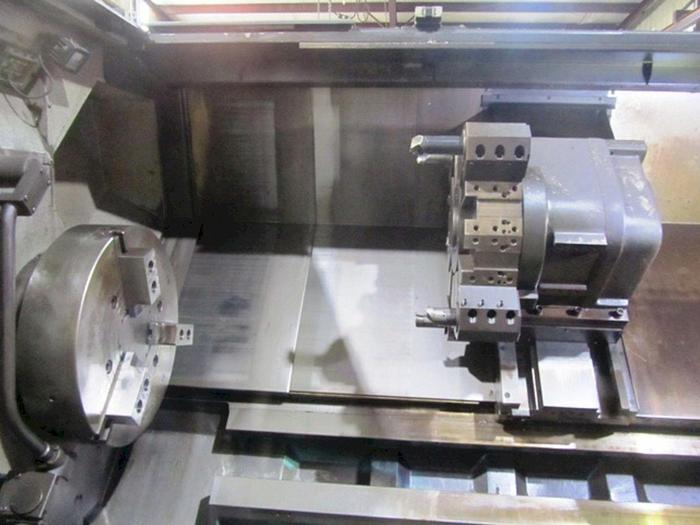

FANUC 32i CNC Control with 10.5" Color LCD Screen | Chip Conveyor | Coolant System | 12 Position Turret | Tool Setter | Samchully 24" 3-Jaw Hydraulic Chuck
Specifications
| Manufacturer | Doosan |
| Model | PUMA 480L |
| Year | 2014 |
| Condition | Used |
| Serial Number | ML0146-000483 |
| Stock Number | 22339 |
| Max Swing Over Bed: | 35.4" |
| Max Turning Diameter: | 25.6" |
| Chuck Size: | 24" |
| Max Distance Between Centers: | 84" |
| Max Turning Length: | 80.4" |
| X-Axis Travel: | 14.3" |
| Z-Axis Travel: | 81" |
| X-Axis Rapid Traverse: | 630 IPM |
| Z-Axis Rapid Traverse: | 394 IPM |
| Turret Positions: | 12 |
| Spindle Nose: | A1-15 |
| Spindle Bore: | 7.1" |
| Bar Capacity: | 6.5" |
| Spindle Speed Range: | 20-1500 RPM |
| Spindle HP: | 63 HP |

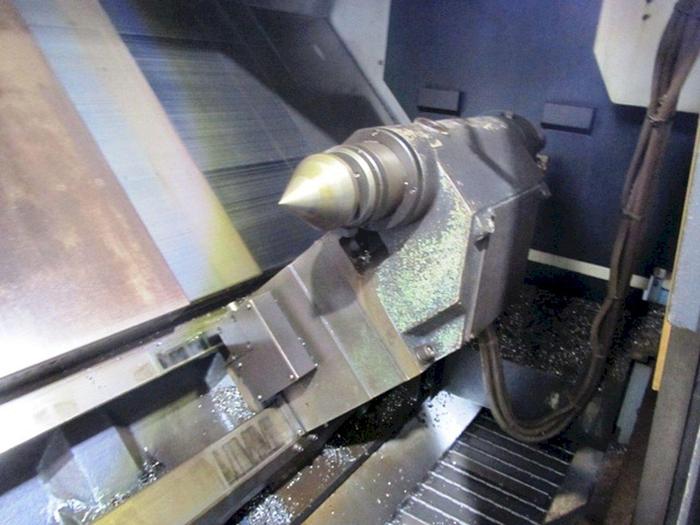

| Tailstock Quill Travel: | 4.1" |
| Electrics: | 220/3/60 |
| Approx. Machine Dimensions: | 226" x 87" |
| Approx. Machine Height: | 94" |
| Approx. Machine Weight: | 27,000 lbs. |
