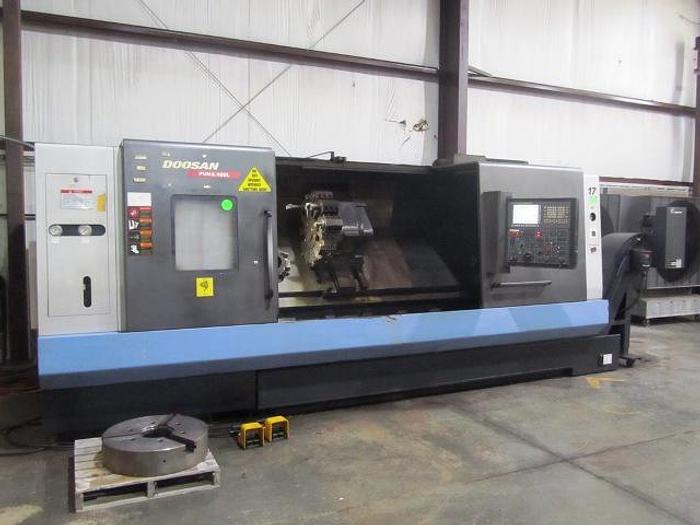

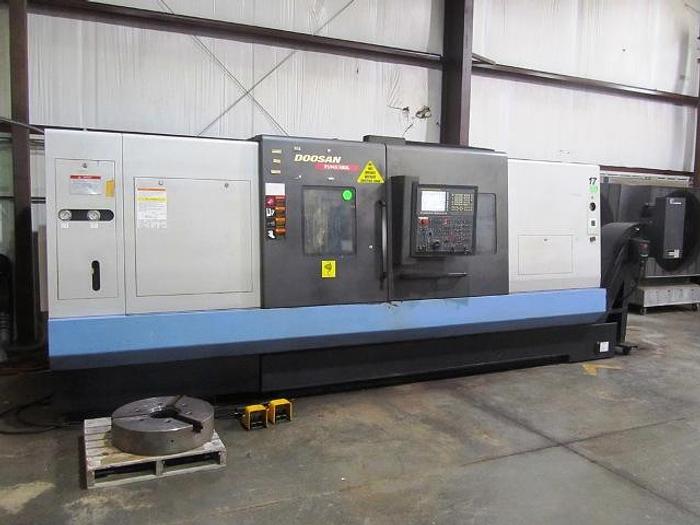

2014 Doosan PUMA 480L
![Used 2014 Doosan PUMA 480L](https://i.machineryhost.com/4eea3a56ec72e3f077a8fdac5ca6bb8d/large-used-2014-doosan-puma-480-l.jpg)
Sold
2014 Doosan PUMA 480L
Location:Cincinnati, OH
Description

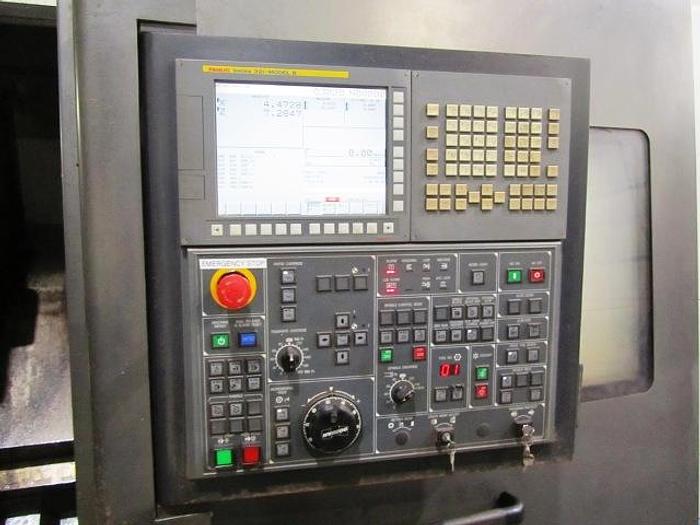

FANUC 32i CNC Control with 10.5" Color LCD Screen | Chip Conveyor | Coolant System | 12 Position Turret | Tool Setter | Samchully 24" 3-Jaw Hydraulic Chuck
Specifications
Manufacturer | Doosan |
Model | PUMA 480L |
Year | 2014 |
Condition | Used |
Serial Number | ML0146-000484 |
Stock Number | 22340 |
Max Swing Over Bed: | 35.4" |
Max Turning Diameter: | 25.6" |
Chuck Size: | 24" |
Max Distance Between Centers: | 84" |
Max Turning Length: | 80.4" |
X-Axis Travel: | 14.3" |
Z-Axis Travel: | 81" |
X-Axis Rapid Traverse: | 630 IPM |
Z-Axis Rapid Traverse: | 394 IPM |
Turret Positions: | 12 |
Spindle Nose: | A1-15 |
Spindle Bore: | 7.1" |
Bar Capacity: | 6.5" |
Spindle Speed Range: | 20-1500 RPM |
Spindle HP: | 63 HP |
Tailstock Quill Travel: | 4.1" |
Electrics: | 220/3/60 |
Approx. Machine Dimensions: | 226" x 87" |
Approx. Machine Height: | 94" |
Approx. Machine Weight: | 27,000 lbs. |
