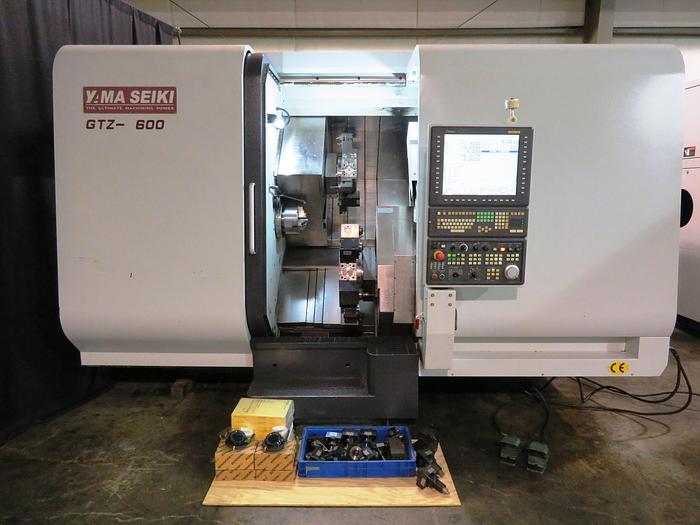

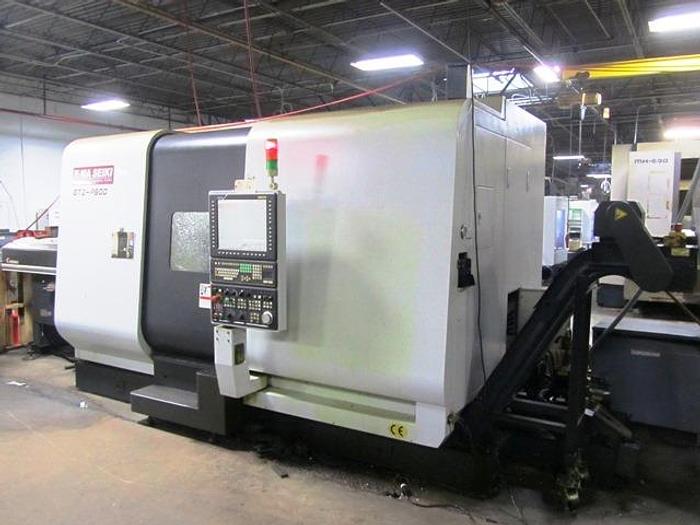

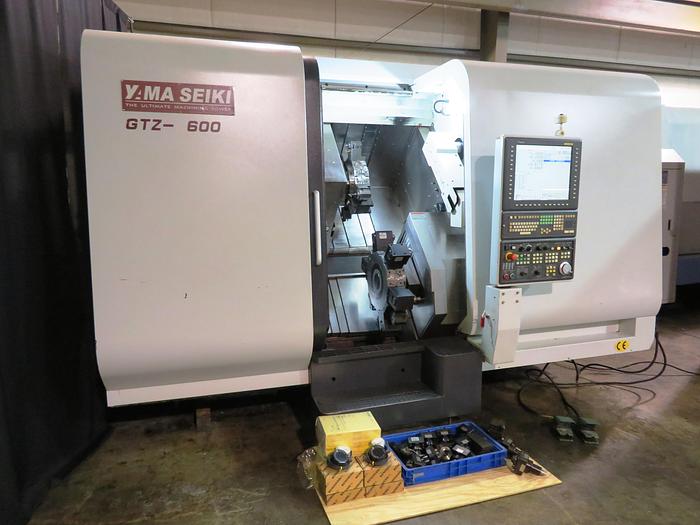

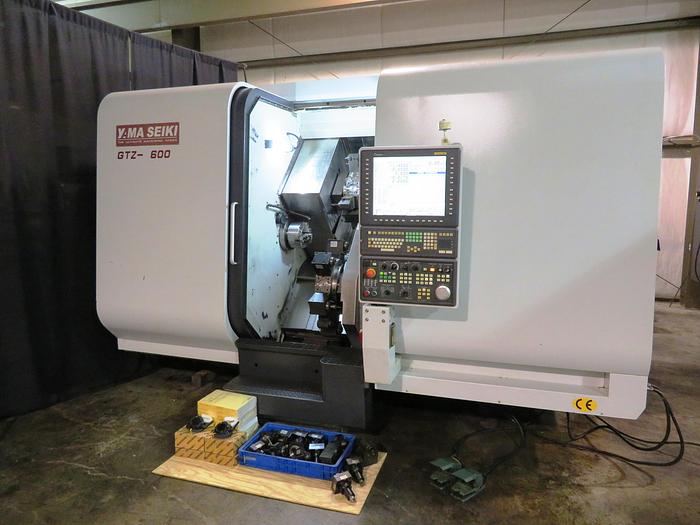

2015 Yama Seiki GTZ-2600Y Multi-Axis CNC Turning Center with Milling
Sold
2015 Yama Seiki GTZ-2600Y Multi-Axis CNC Turning Center with Milling
Location:Indian Trail, NC
Description

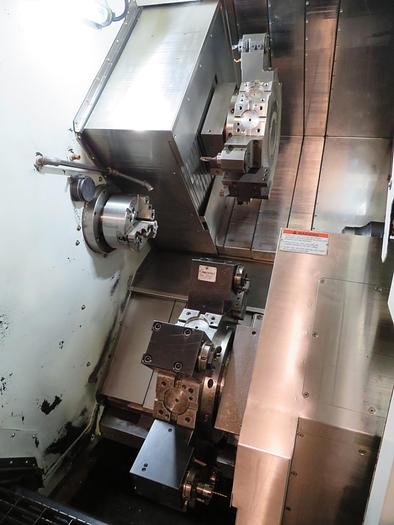

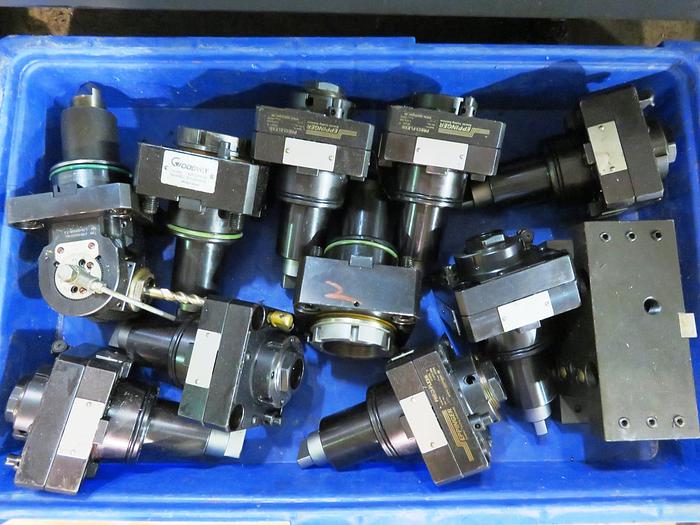

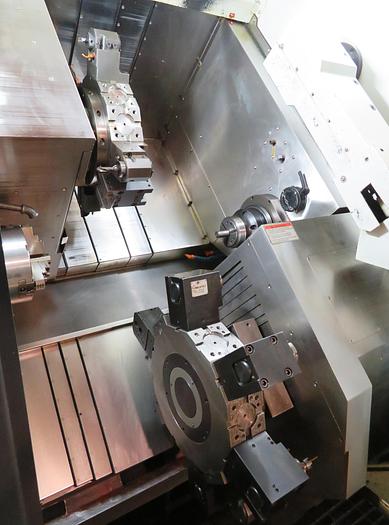

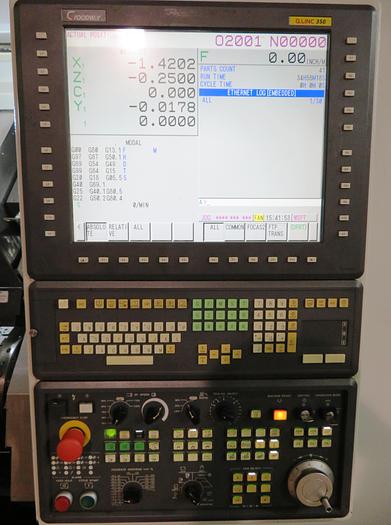

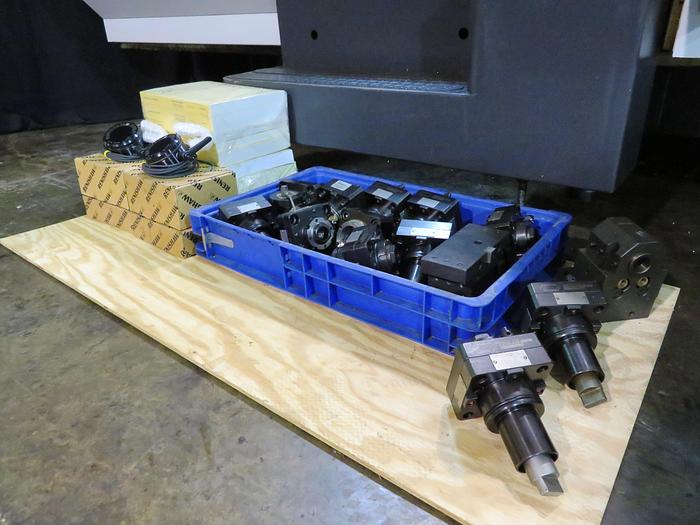

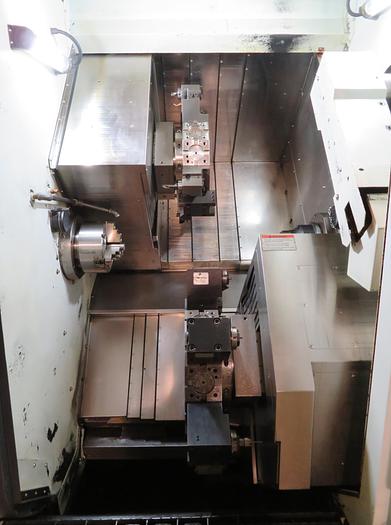

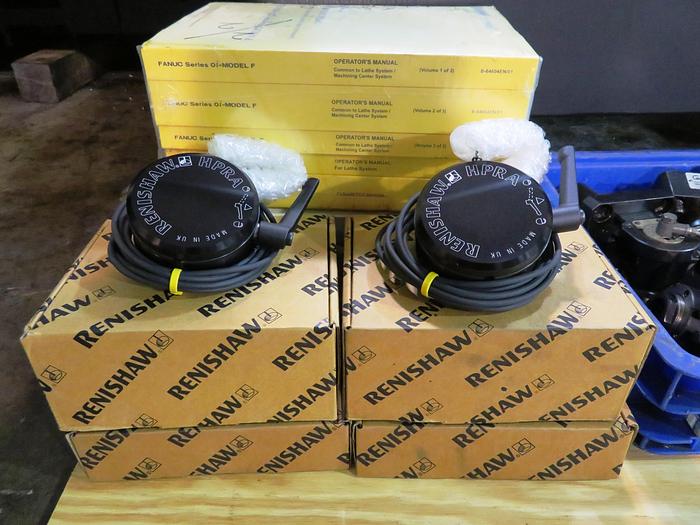

(1) 8" 3-Jaw (Main Spindle) & (1) Collet Chuck (Sub Spindle) | Y-Axis Milling | Dual Turrets | Large Complement of Live & Static Tooling | G.Link 350 CNC Control (FANUC 31i-B) | Renishaw HPRA Touch Setting Tool Probes
LOW HOURS!
MAIN SPINDLE HOURS: Approx. 1,235 Cutting Hours
SUB SPINDLE HOURS: Approx. 3 Cutting Hours
Specifications
| Manufacturer | Yama Seiki |
| Model | GTZ-2600Y |
| Year | 2015 |
| Condition | Used |
| Serial Number | 100B011 |
| Stock Number | 22348 |
| X-Axis Travel: | 7.67" (Turret 1/2) |
| Y-Axis Travel: | 3.93" = ± 1.96" |
| Z-Axis Travel: | 24.4" (Turret 1/2) |
| Spindle Bore: | 2.99" (Main/Sub) |
| Bar Capacity: | 2.55" (Main/Sub) |
| Spindle Nose: | 2-6 (Main/Sub) |
| Spindle Speeds: | to 4,000RPM (Main/Sub) |
| Spindle Motor: | 20HP (Main/Sub) |
| Max Swing: | 10.62" |
| Max. Cutting Diameter: | 9.84" |
| Max. Cutting Length: | 23.3" |
| Rapid Traverse X/Y/Z: | 945/394/945 IPM |
| Live Milling Speeds: | to 6,000RPM |
| Live Milling Motor: | 7.3HP |
| Approx. Dimensions: | 176"(L) x 101"(W) x 93"(H) |
| Approx. Weight: | 20,000lbs. |
