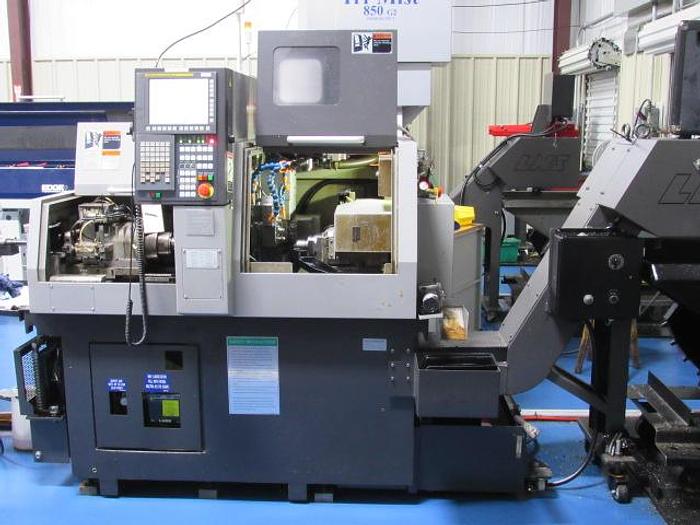

2018 Tsugami B0206-III 6-Axis CNC Swiss Lathe
No longer available
2018 Tsugami B0206-III 6-Axis CNC Swiss Lathe
Location:Lockport, LA
Description

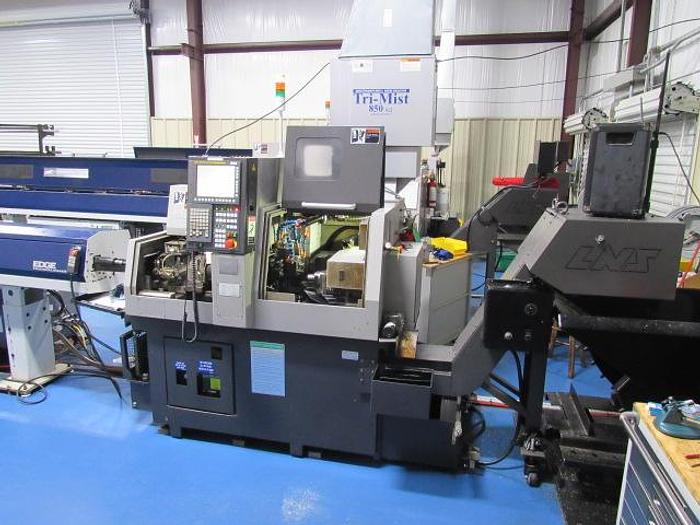

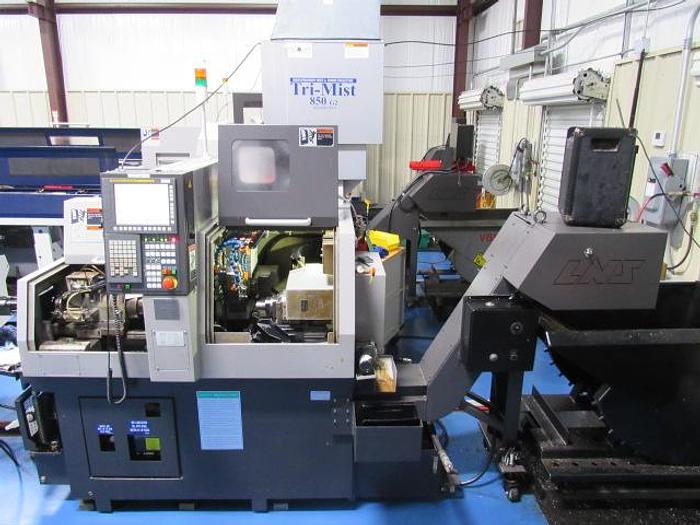

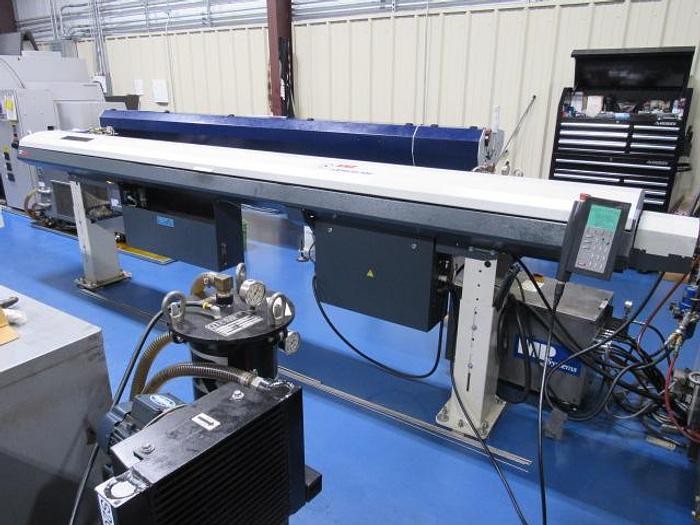

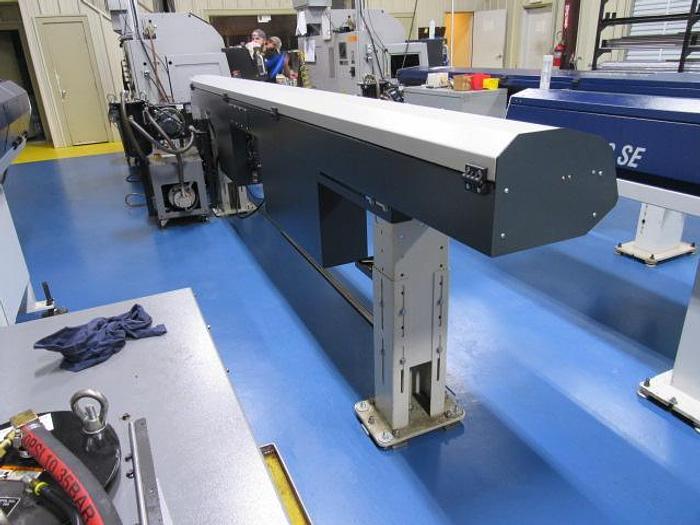

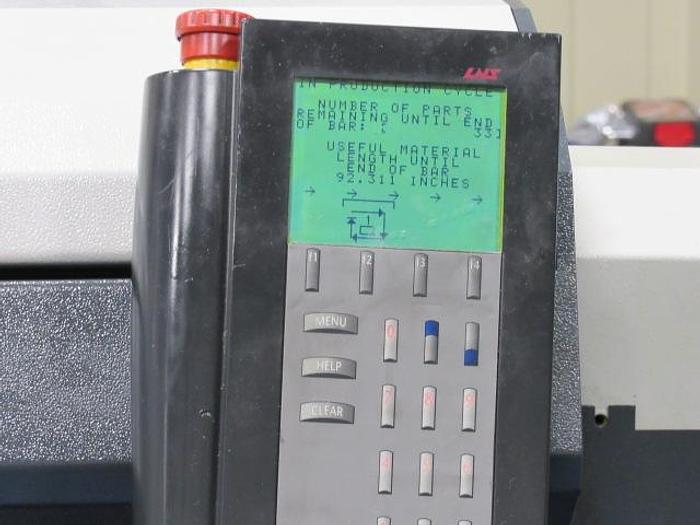

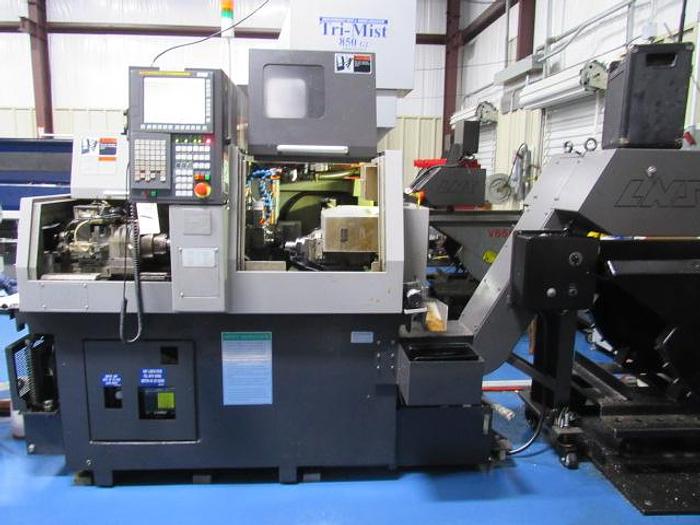

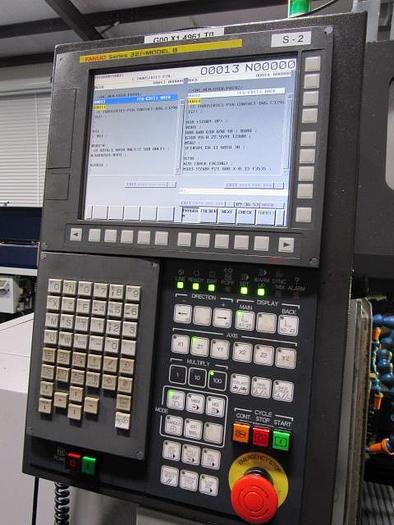

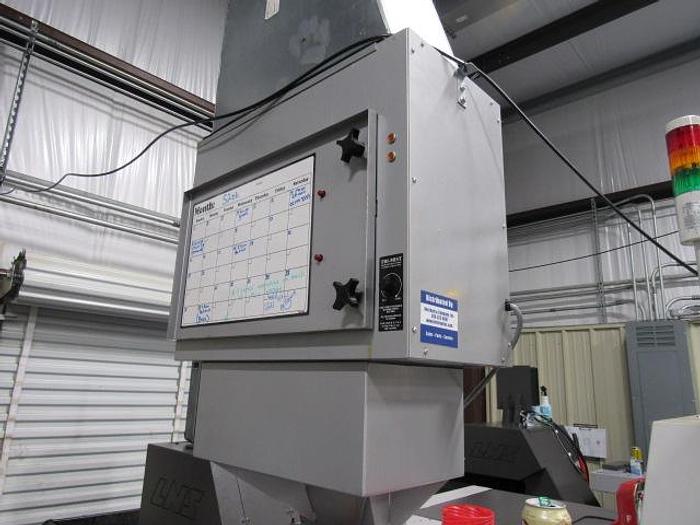

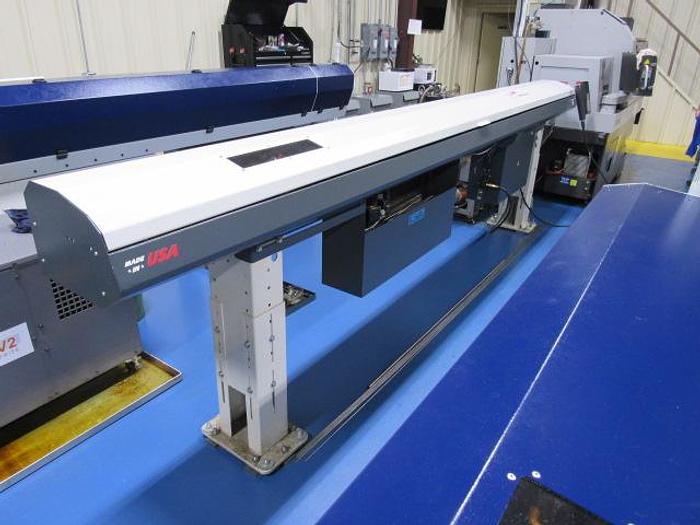

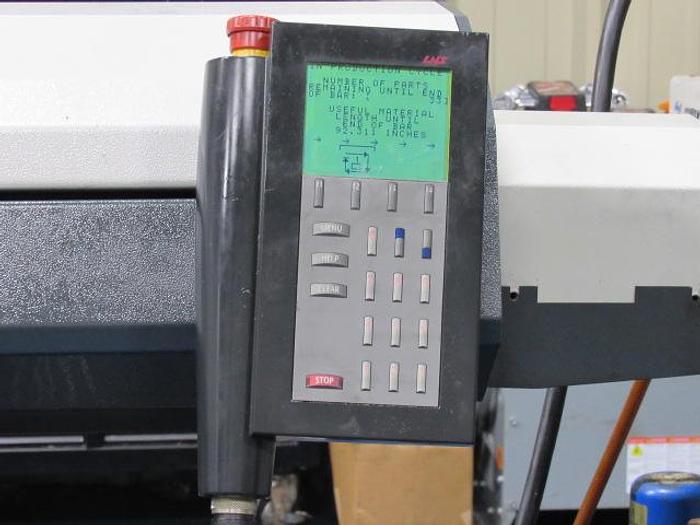

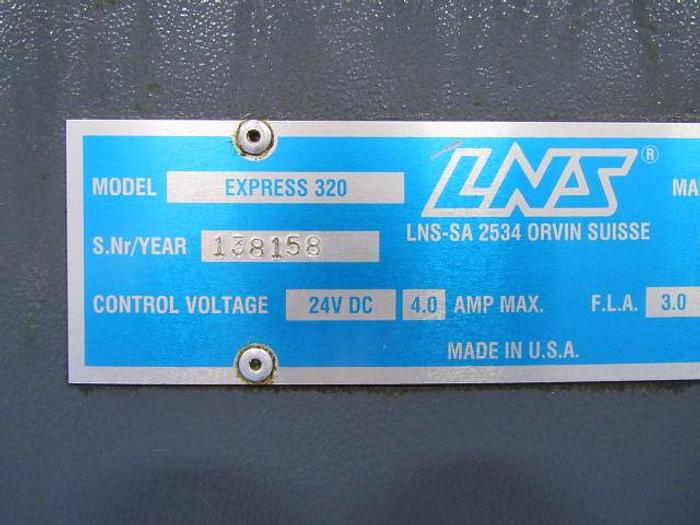

Tri-Mist 850 Mist Collector | Chip Conveyor | High Pressure Pump | Fanuc 32i-B CNC Controls | Y-Axis Machining | Live Milling | Sub Spindle | LNS Express 320 Barfeeder | 9,500 Run Hours, 6,200 Cutting Hours

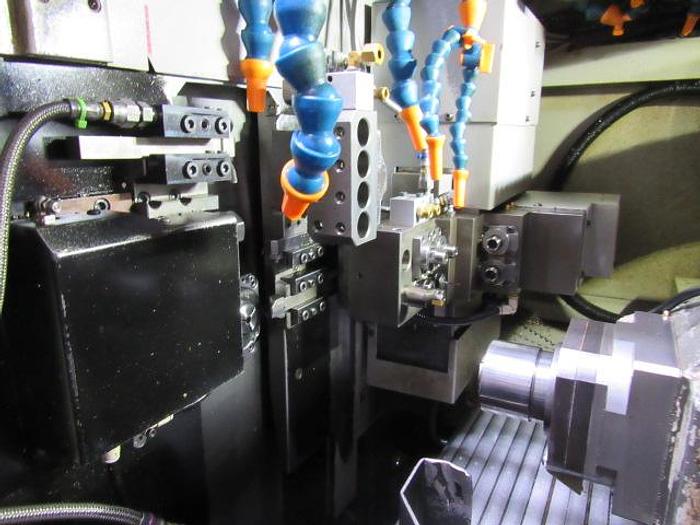

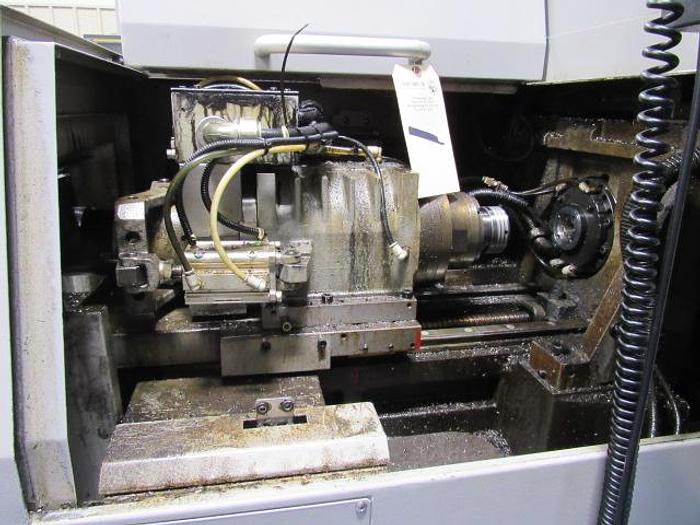

From Tsugami: "The B0206-III is a 6-axis convertible opposed gang tool CNC lathe that adds Y2 Axis capability to the back tool post of the B0 configuration. Overlapped, simultaneous machining is enabled. Plus, back slotting, back end milling, and back cross drilling/tapping may be performed. Use the B0206-III for traditional 20mm Swiss turning or for making parts smaller than 3:1 L/D ratio in chucker mode (optional conversion kit needed)."
Specifications
| Manufacturer | Tsugami |
| Model | B0206-III |
| Year | 2018 |
| Condition | Used |
| Stock Number | 22402 |
| Max. Bar Stock: | 20mm/.79" |
| Axis: | 6 |
| Convertible: | Run without Guide Bushing (Chucker) |
| Max. Headstock Stroke with Guide Bushing: | 210mm/8.26" |
| Max. Headstock Stroke Without Guide Bushing: | 45mm/1.77" |
| Tool Positions: | 25 |
| Live Tool Positions: | 8 |
| Main Spindle Speed: | to 10,000 RPM |
| Sub Spindle Speed: | to 12,000 RPM |
| Live Tool Speed: | 8,000 RPM |
| Spindle Motor: | 2.2/3.7 kW |
| Approx. Machine Weight: | 4,520 lbs. |
| Approx. Machine Dimensions: | 65.2" x 44.3" x 66.9" |
