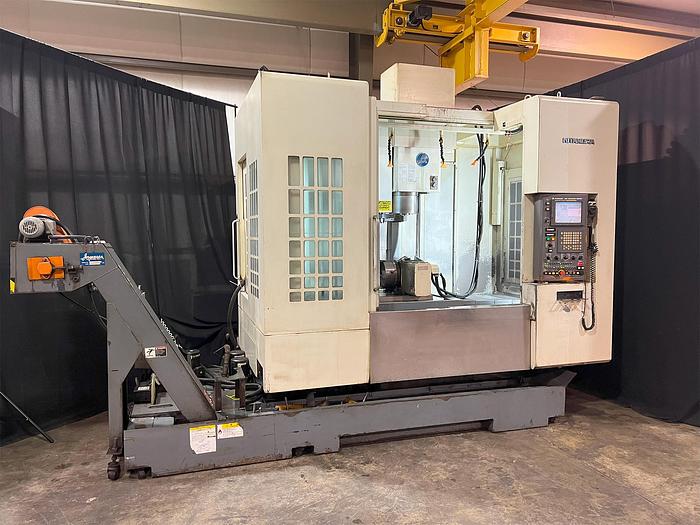

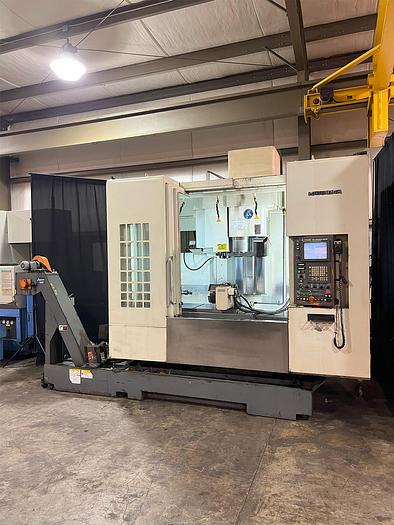

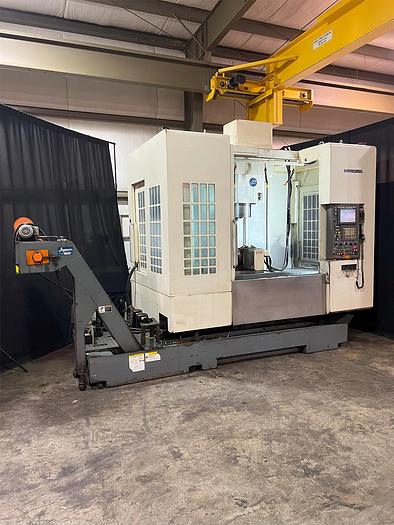

2009 Kitamura MyCenter 4XiF 4-Axis CNC Vertical Machining Center
2009 Kitamura MyCenter 4XiF 4-Axis CNC Vertical Machining Center
Contact us for price
Location:Indian Trail, NC
Description

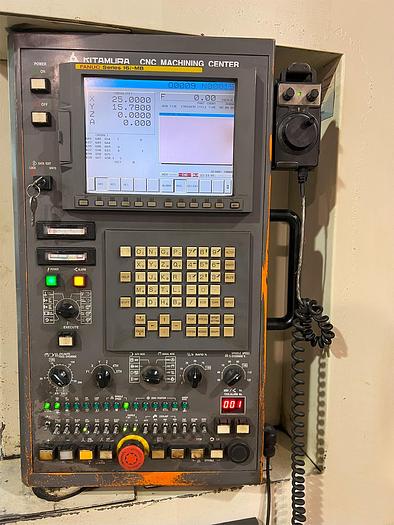

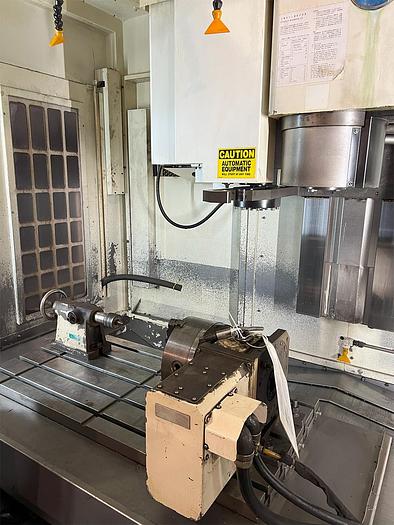

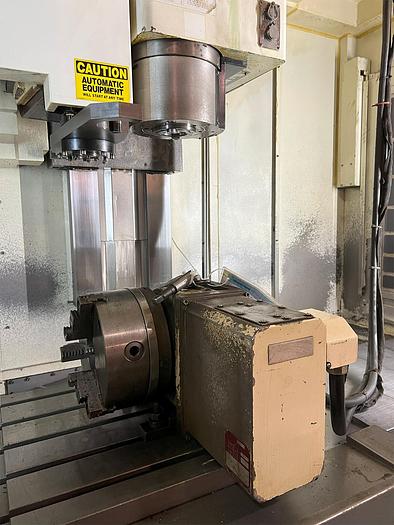

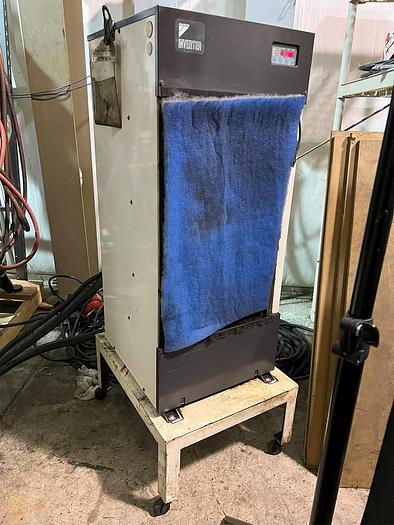

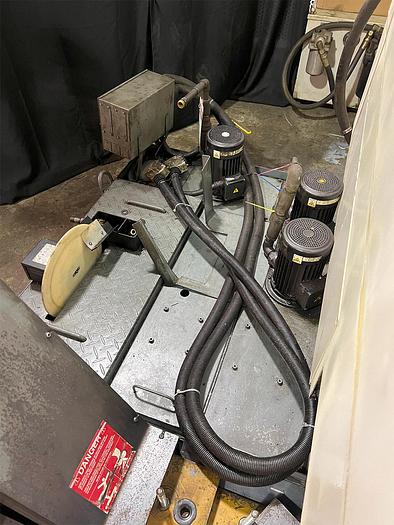

FANUC 16-iMB CNC Control with Custom Macro B, Ethernet CAT5, FANUC Data Server, PCMCIA Card Adapter, RPM | TSUDAKOMA Model RNA-250 10" 4th-Axis Rotary Table with Scroll Chuck, Tailstock | Full Box Way Construction | Spindle Oil Chiller | 500 PSI TSC | Standard Coolant | Enclosure Flush Coolant | 120 Gallon Coolant System | Dual Chip Augers (Y-Axis) | Chip Conveyor | Hydraulic Z-Axis Counterbalance
26,072 OPERATING HOURS
Approx. 140" (L) x 116" (W) x 120" (H), 18,370 lbs.
Specifications
| Manufacturer | Kitamura |
| Model | MyCenter 4XiF |
| Year | 2009 |
| Condition | Used |
| Serial Number | 21293 |
| Stock Number | 22488 |
| #50 BIG PLUS Spindle Speeds: | to 10,000 RPM |
| Table Size: | 43.3" x 20.6" | 18mm T-Slotted |
| X/Y/Z-Axis Travels: | 40.0"/20.1"/20.1" |
| Spindle Nose to Table: | 6.9" - 27.0" |
| Column Slide Away to Center Line: | 10.4" - 30.4" |
| Table Capacity: | 2,200 lbs. |

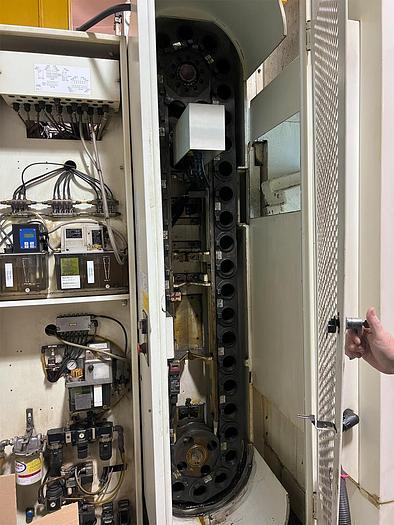

| ATC: | 40 Position |
