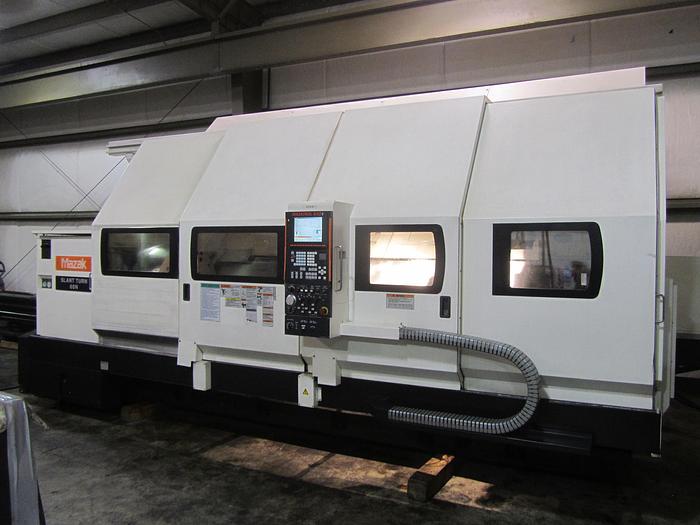

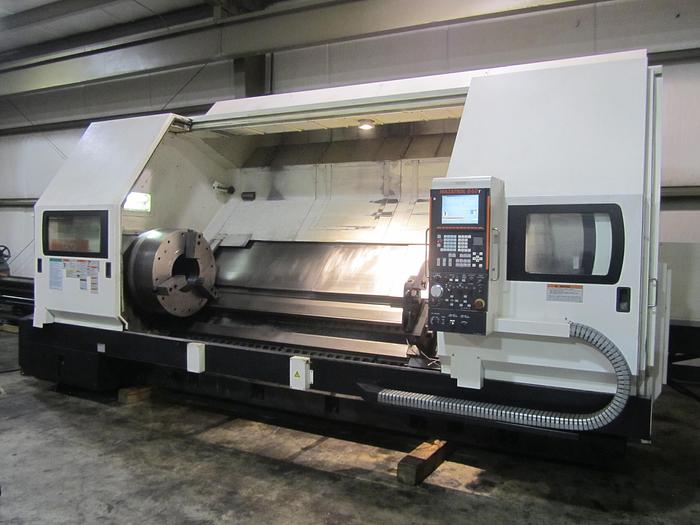

2011 Mazak Slant Turn 60N CNC Slant Bed Turning Center
Sold
2011 Mazak Slant Turn 60N CNC Slant Bed Turning Center
Location:Indian Trail, NC
Description

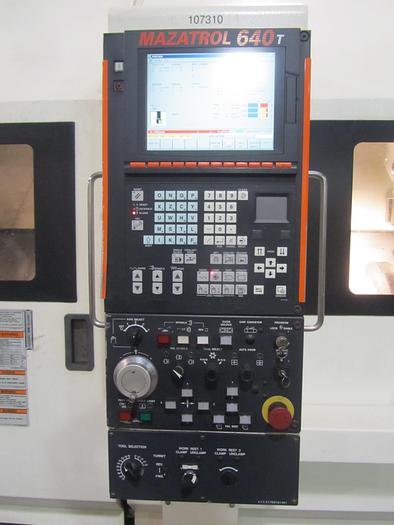

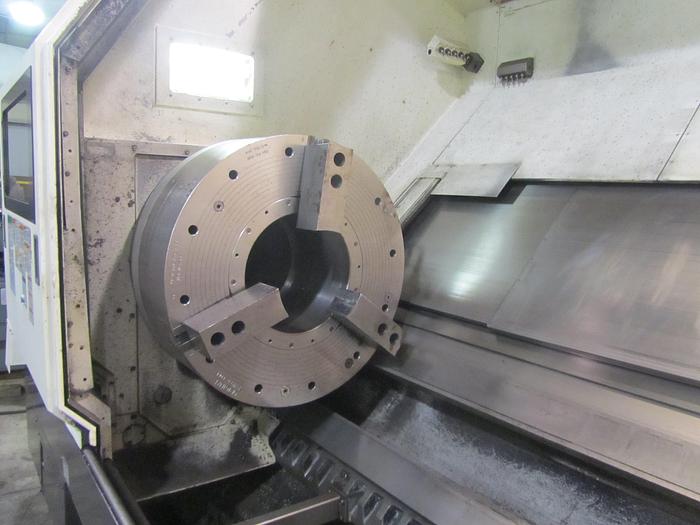

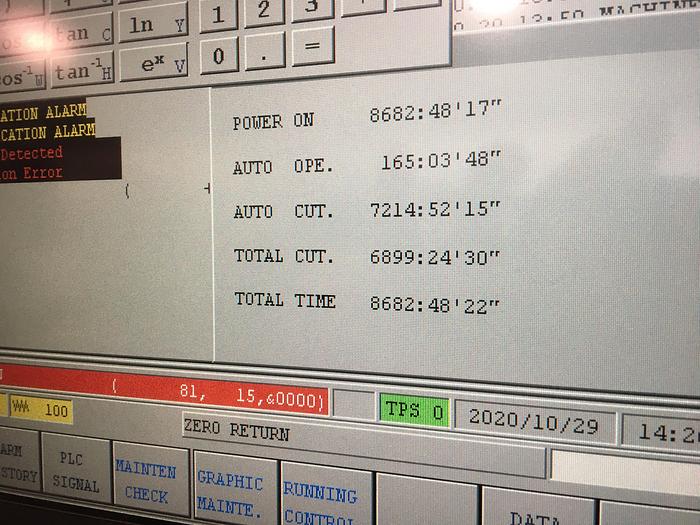

Mazatrol Fusion 640T CNC Control | Chip Conveyor | Manual Steady Rest | 33" Air Chuck | Total Cutting Hours: 6,899
Specifications
| Manufacturer | Mazak |
| Model | Slant Turn 60N |
| Year | 2011 |
| Condition | Used |
| Serial Number | 228529 |
| Stock Number | 22289 |
| Main Spindle Chuck | 33" |
| Maximum Swing | 36" |
| Maximum Cutting Diameter | 28.75" |
| Maximum Machining Length | 120" |
| Main Spindle HP | 50 / 60 HP |
| Main Spindle Speeds | to 1,000 RPM |
| Main Spindle Nose | A2-20 |
| Main Spindle Bore | 15" |
| X-Axis Travel | 25.3" |
| Z-Axis Travel | 120.1" |
| Rapid Traverse Rate (X / Z) | 475 / 630 IPM |
| Tailstock Body Travel | 110" |
| Tailstock Center Stroke | 6.3" |
| Tailstock Center | MT #6 |
| Approx. Machine Dimensions | 162" W x 323" L x 120" H |
| Approx. Weight | 40,920 lbs |
