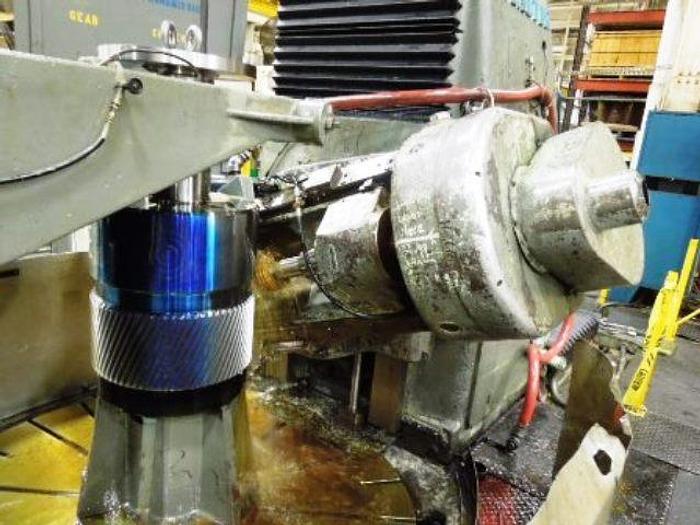

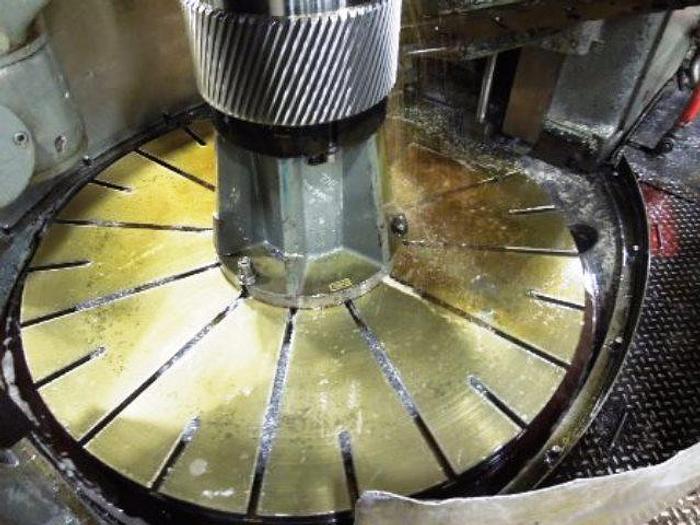

Pfauter P3000B Vertical Gear Hobber
Pfauter P3000B Vertical Gear Hobber
Contact us for price
Location:Indian Trail, NC
Description
Universal Hob Head with Automatic Hob-Shift | Outboard Support Column with Clamshell Type | Differential Mechanism | Hydraulic Table Relief | Fully Automatic Work Cycles | Chip Conveyor | Change Gears
Specifications
| Manufacturer | Pfauter |
| Model | P3000B |
| Year | 1967 |
| Condition | Used |
| Serial Number | 21548 |
| Stock Number | 21810 |
| Maximum Workpiece Diameter | 120" |
| Maximum DP | 1 |
| Minimum Number of Teeth Cut | 16 |
| Maximum Axial Travel | 41.3" |
| Maximum Helix Angle | 45 Degrees |
| Center Distance Between Workpiece and Hob | Maximum 65" / Minimum 11.8" |
| Diamter of Work Table | 75" |
| Diameter of Work Table Bore | 20" |
| Maximum Hob Dimensions | Dia. 11.4" / Length 13" |
| Maximum Hob Shift | 12" |
| Hob Speed, Infinitely Variable | 12 to 150 RPM |
| Feeds, Infinitely Variable - Axial Feed | .014 to .283 i.p.r. |
| Main Motor | 20 HP |
| Total Power Requirements | 42 kva |
| Approx. Machine Nex Weight | 68,000 lbs |
| Floor Space Required | 260" L x 159" W x 151" H |
