1996 Pietro Carnaghi ATF 14 TM
Sold
1996 Pietro Carnaghi ATF 14 TM
Location:Indian Trail, NC
Description

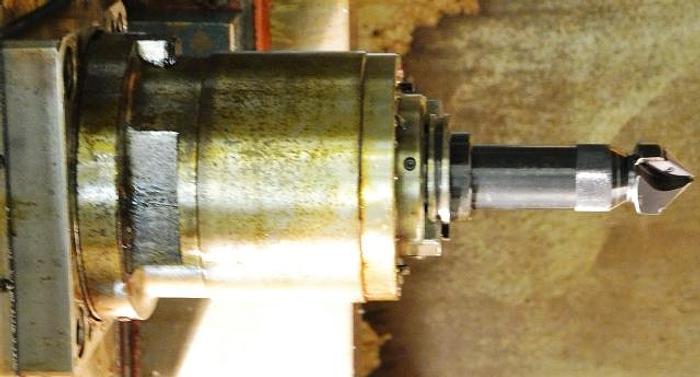

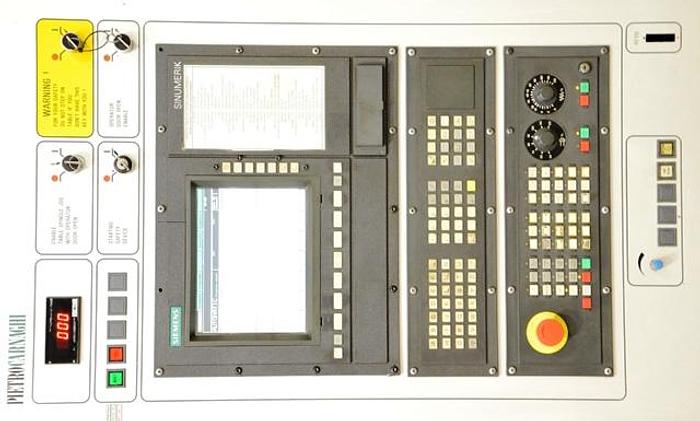

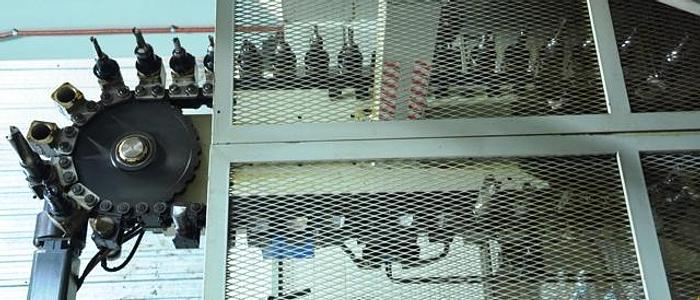

Siemens Simumerik 840C CNC Control | 12 Station Head Changer with (5) Turning Heads | (2) Right-Angled CAPTO Milling Heads | (1) CAT50 Straight Milling Head | (1) CAT50 Right Angled Milling Head and (1) Renishaw MP3 Touch Probe | 40 Station ATC with (30) CAT50 | (10) CAPTO VDO Stations
Specifications
| Manufacturer | Pietro Carnaghi |
| Model | ATF 14 TM |
| Year | 1996 |
| Condition | Used |
| Stock Number | 22281 |
| Pallet size | (2) 55" |
| Max machining diameter | 63" |
| Max machining height | 59" |
| Max distance table to cross rail | 65.9" |
| X-axis travel | 152.70" |
| Z-axis travel | 49.20" |
| Cross rail vertical travel | 28" |
| Main drive speeds (2 ranges) | to 350 RPM / 80HP Drive Motor |
| Max milling speeds | to 3,000 RPM / 40HP Motor |
