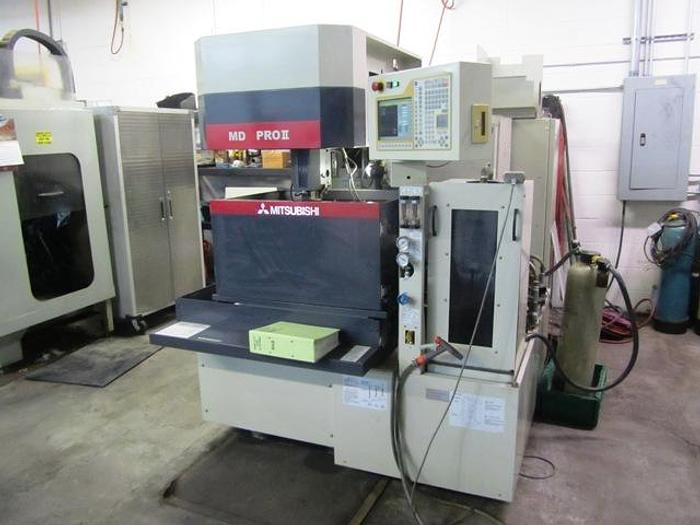

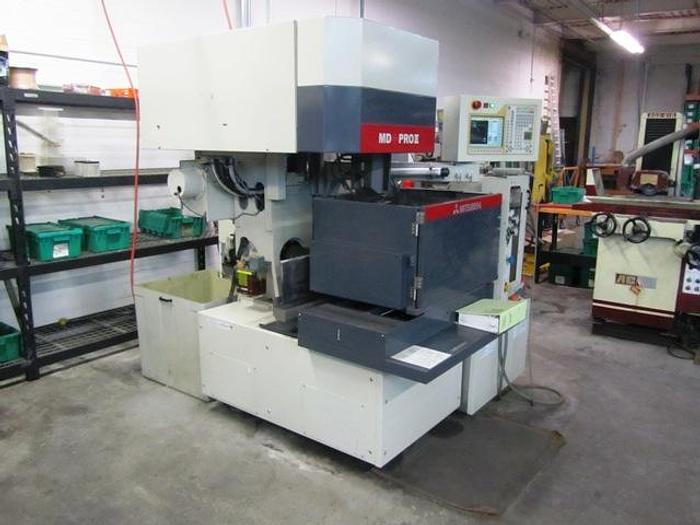

2007 Mitsubishi MD + Pro II 5-Axis Wire EDM
Sold
2007 Mitsubishi MD + Pro II 5-Axis Wire EDM
Location:United States
Description

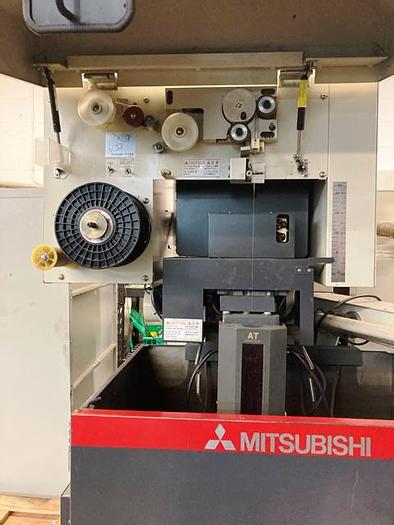

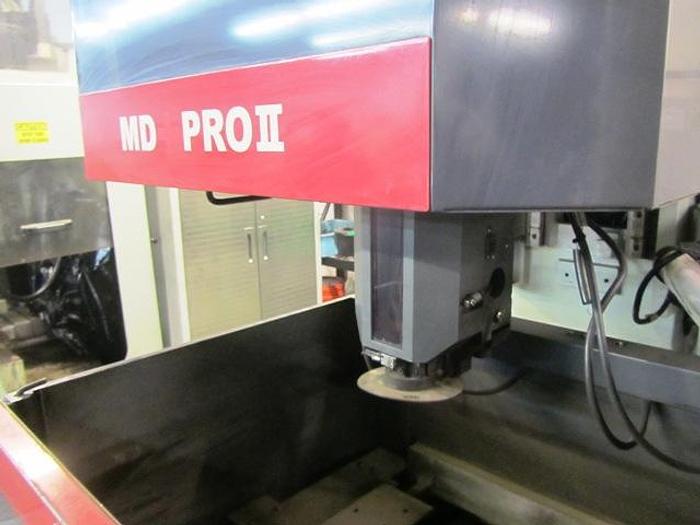

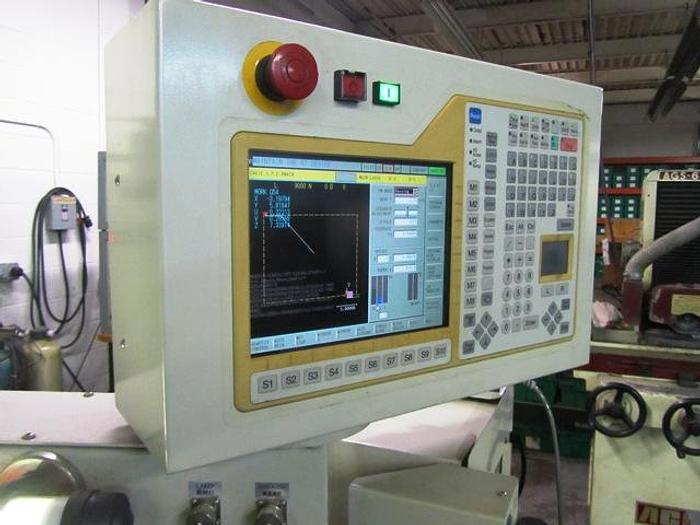

Automatic Threader | Submerged Cutting | Mitsubishi CNC Control | Machining | Low Hours | Installed in 2009 / 5 Axis containing X, Y, Z, V, Z. V is the upper Head that will Jog and Z is the Lower Head for Taper Cutting. Electric Chiller, Perfect Running Machine. Came from an Aerospace Facility in SC. Beautiful Machine. In Stock here in Indian Trail, NC. We have video showing everything running properly.
Specifications
| Manufacturer | Mitsubishi MD + Pro II Wire EDM |
| Model | MD + Pro II |
| Year | 2007 |
| Condition | Used |

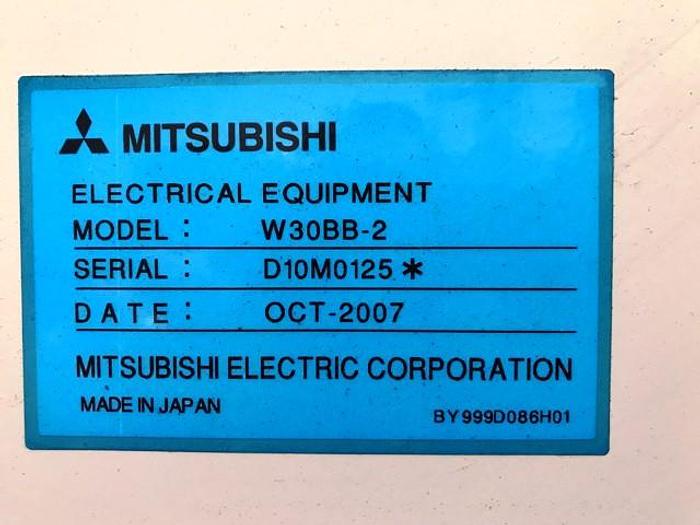

| Serial Number | 08DB8145 |
| Stock Number | 22311 |
| X-Axis Travel | 12.6" |
| Y- Axis Travel | 9.84" |
| Z-Axis Travel | 8.66" |
| Maximum Workpiece Diemsions (W x D x H) | 700 mm x 590 mm x 215 mm |
| Maximum Weight of Workpiece (kg) | 500 |

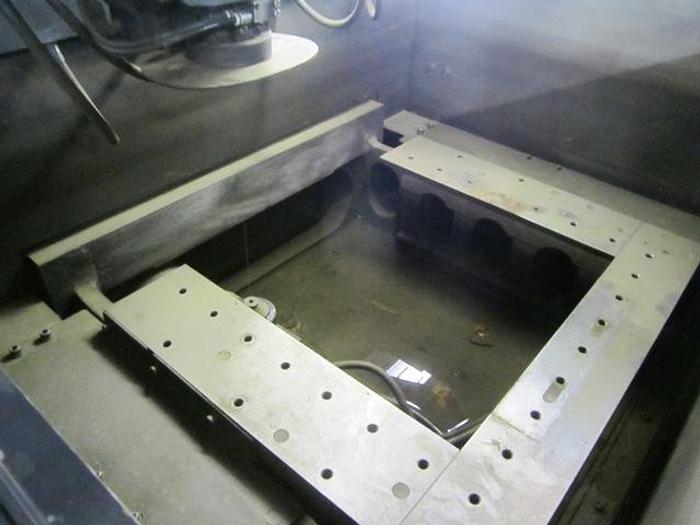

| Diemsion of Table | 21.2" L x 16.9" W |
| Table Rapid Traverse Rate (mm/min) | 1300 |
| Wire Diameter | 0.1 - 0.3 mm |
| Maximum Wire Feed Speed (m/mm) | 23 |
| Wire Tension (N) | 0.5 - 25 |
| Taper Machining Unit | Mounted as Standard |
| Axis Movement Amount (U x V) | +/- 32 x +/- 32 |
| Maximum Taper Angle | 15 (with100mm Plate Thickness) |
| Outside Dimensions (W x D x H) | 1080 x 2085 x 2037 mm |
| Weight | 5100 Lbs |
| Dielectric Fluid Reservoir / Weight when Dry | 280 kg |

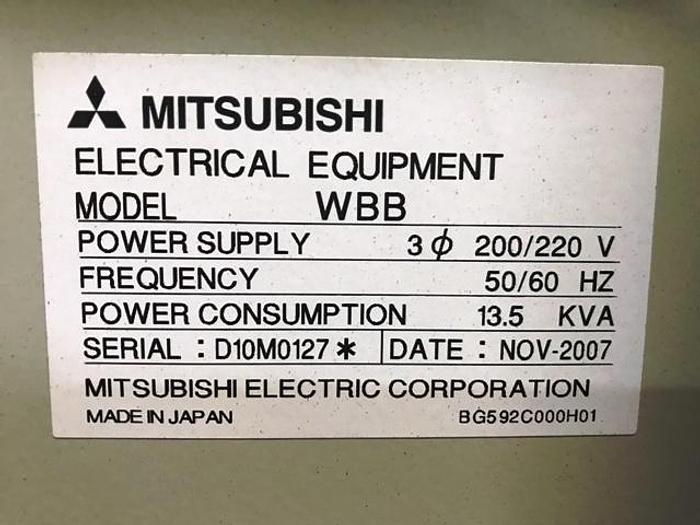

| Power Supply | 240 lbs / 220V / 60Hz / 3 Phase |
